Model 9215-9250 Oil Meters
ISTEC 9200 Series are positive displacement type meters with a mechanical totalizer. These meters are very accurate (±1%) over a wide flow range. The positive displacement design in not affected by viscosity or density and they can be mounted in either horizontal or vertical positions. The meters are also available with an optional dry contact pulse output and ANSI or DIN flanges. For supply – return applications they can be ordered as a matched pair (±0.5% accuracy) built for differential measurement.
FEATURES
- Complete Range of Products Offering the Best Solutions for the Measurement of Oil Consumption
- State-of-the-art Design with Electronic Counter, Flow Indication, Analog and Digital Output Signals, Limiting Value Switch
- Mounting on the Pressure or Suction Side of a Pump, with No Straight Inlets or Outlets Required
- Independent of Viscosity and Temperature
- High Vibration Resistance
- Classical Version with Mechanical Display
- Flow Measurement of Mineral Oils such as Heating or Propellant Fuels
- In Burners, Aboard Ships, Land Vehicles and Fixed Installations
- Marine and Metrological Type Approvals (optional)
- Solutions for All of Your Measuring Applications from a Single Supplier
- Reliable Monitoring and Flexible Control of the System
- Simple Burner Settings and Optimizing Consumption
- Highly Flexible Mounting with Small Footprint Requirements
- Accurate Measurements
- Maximum Safety in the Shipbuilding and Automobile Industries
- Cost-effective Metering
- Volume Display on Roller Counter in Gallons
- Fuel Oil Meter with Threaded or Flanged Ends
- Mounting in Horizontal, Vertical or Inclined Positions
- Option: Reed Pulser or RV / IN Pulser
Versions Available Upon Request
- Different Flange Drillings, such as ANSI, JIS
- Meters in Liters Instead of Gallons (Optional) (1 U.S. gallon = 3.785 liters)

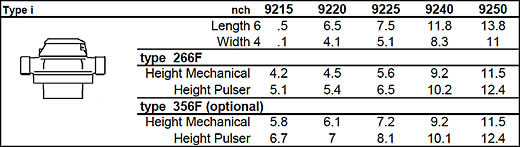

9215 |
9220 |
9225 |
9240 |
9250 |
|
| Nominal Diameter, inches (mm) | 1/2 (15) |
3/4 (20) |
1 (25) |
1-1/2 (40) |
2 (50) |
| Installation Length, inches (mm) | 6.5 (165) |
6.5 (165) |
7.5 (190) |
11.8 (300) |
13.8 (350) |
| Nominal Pressure w/Threaded Ends, psi | 232 |
232 |
232 |
232 |
232 |
| Nominal Pressure w/Flanges, psi | 362/580 |
362/580 |
362/580 |
362/580 |
362/580 |
| Maximum Temperature, Tmax °F | 266, 356 |
266, 356 |
266, 356 |
266, 356 |
266, 356 |
| Maximum Flow Rate, Qmax, gph (l/h) | 160 (600) |
400 (1500) |
800 (3000) |
2400 (9000) |
8000 (30000) |
| Nominal Flow Rate, Qcon, gph (l/h) | 105 (400) |
265 (1000) |
530 (2000) |
1600 (6000) |
5300 (20000) |
| Minimum Flow Rate, Qmin, gph (l/h) | 4 (15) |
8 (30) |
20 (75) |
60 (225) |
200 (750) |
| Approximate Starting Flow Rate, gph | 1 |
3 |
8 |
24 |
80 |
| Maximum Permissible Error | ±1% of Actual Value |
||||
| Repeatability | ±0.2% |
||||
| Safety Filter Mesh Size, mm | 0.400 |
0.400 |
0.400 |
0.800 |
0.800 |
| Dirt Filter Mesh Size, mm | 0.250 |
0.400 |
0.400 |
0.600 |
0.800 |
| Housing Finish | Enameled Red RAL 3013 |
||||
| Weight w/Threaded Ends, lbs (kg) | 4.9 (2.2) |
5.5 (2.5) |
9.3 (4.2) |
38.2 (17.3) |
— |
| Weight w/Flanges, PN 25, lbs (kg) | 8.4 (3.8) |
9.9 (4.5) |
16.5 (7.5) |
44.7 (20.3) |
90.2 (41) |
| Smallest Readbale Total Volume, g | 0.01 |
0.01 |
0.01 |
0.1 |
0.1 |
| Smallest Readable Registration Capacity, g | 999,999 |
999,999 |
999,999 |
9,999,999 |
9,999,999 |
| Smallest Registration Time at Qcont until Rollover, h | 9250 |
3770 |
1880 |
6250 |
1880 |
| Outputs, P/N | 9216 |
9221 |
9226 |
9241 |
9251 |
| Pulse Value for Totalizer, vol/pulse | 0.1 |
0.1 |
1 |
10 |
10 |
