 Model SZ Series Turbine Gas MetersSZ Series Turbine Gas Meters

The SZ Series Turbine Meters are Inferential (type) meters that employ the gas velocity to derive a volumetric reading. This simple mechanical design consists of a tubular body with flow straightener, an inlet diffuser, turbine wheel, a gear train, and an odometer index with pulse output. Custody Transfer versions (conform to AGA 7 and OIML standards require oil), reduced size and extended range sub-meter versions available. The SZ Turbine Meters are lightweight, compact and require almost no maintenance. They have a "fail open" design that is ideal for installations where continuity of supply is critical.



  • Lightweight Aluminum Construction
  • Maximum Working Pressure to 175 psi
  • Permanently Lubricated Bearings
  • frequency/High-frequency Pulse Outputs (standard)
  • Rugged Mechanical Index Rotatable Through 360°
  • Self-supporting Line Mount Design
  • Mount in Any Position
  • Recommended for Indoor Applications
  • Direct read Odometer Type Index
  • Rangeability 20-1
  • Operating Temperature 0°F to +130°F
  • Connections
    1" Female NPT
    1-1/2" Female NPT
    2" Wafer *
    3" Wafer *
    4" Wafer *

* For Installation Between ANSI 150 Flanges

SZ-1 • SZ-2
SZ-40
SZ-65
SZ-100 • SZ-160
SZ-250
SZ-1. SZ-2
SZ-40
SZ-65
SZ-100, SZ-160
SZ-250
4.0 lbs
7.0 lbs
3.0 lbs
9.0 lbs
12.0 lbs

SCFH at Operating Temperature

Pressure (psi)
SZ-1
SZ-2
SZ-40
SZ-65
SZ-100
SZ-160
SZ-250
4 oz.
900
1500
2300
3500
5600
8800
14000
2
1020
1700
2610
3975
6360
9990
15900
5
1200
2000
3080
4690
7500
11795
18760
10
1500
2500
3860
5880
9410
14785
23520
15
1820
3000
4650
7070
11315
17780
29290
20
2125
3540
5430
8260
13220
20770
33050
25
2430
4050
6210
9450
15125
23765
37810
30
2735
4560
7000
10640
17030
25760
42570
40
3350
5580
8560
13025
20840
32750
52095
50
3950
6600
10120
15400
24650
38730
61620
60
4560
7620
11690
17790
28450
44720
71140
75
5550
9150
14035
21350
34170
53700
85430
100
7000
11700
17950
27310
43700
68670
109240
125
8540
14250
21800
33260
53220
83630
133050
150
10060
16800
25760
39210
62740
98600
156860
175
11600
19350
29680
45160
72270
113560
180670

Capacities based on 14.73  Atmospheric – Pressure and 14.73 Base Pressure

Gas Meter Model SZ Series Turbine Dimensional Drawing

Model
Fig.
Pipe Size/Connection
C
C1
A
B
Pressure Drop
at Capacity
Inches, Water Column
m Bar
Shipping
Weight
(lbs approx)
SZ-1
1
1" FNPT
9.45"
7.28"
6.26"
4.56"
0.9
2.2
7
SZ-2
1
1" FNPT
9.45"
7.28"
6.26"
4.56"
2.2
5.5
7
SZ-40
2
1-1/2" FNPT
7.5"
5.0"
7.95"
5.9"
2.4
6.0
8
SZ-65
3
2" ANSI 150 Wafer
2.36"
–
7.95"
5.9"
4.8
12.0
7
SZ-100
4
3" ANSI 150 Wafer
4.73"
–
8.86"
5.9"
2.6
6.5
18
SZ-160
4
3" ANSI 150 Wafer
4.73"
–
8.86"
5.9"
5.6
14.0
18
SZ-250
4
4" ANSI 150 Wafer
5.9"
–
9.65"
6.5"
3.2
8.0
23



PULSE OUTPUT DATA
Model No.
Low-frequency E1
Form “A” Reed Switch
(cubic feet/pulse)
High-frequency E200
Proximity Sensor
(pulses/cubic feet)
SZ-1
1
50
SZ-2
1
50
SZ-40
10
25
SZ-65
10
25
SZ-100
100
2.5
SZ-160
100
2.5
SZ-250
100
2.5


TECHNICAL DATA

Technical Data for Model SZ Series Turbine Gas Meters

E1 Series Reed Contact
Max. Voltage 24V DC
Max. Current 50mA
Max. Capacity 25W
E200 Pulser
Standard Voltage Un - 8V DC
Current Consumption Active Surface Open 1 ≥3mA
Active Surface Closed 1 ≤1mA

MODELS SZ-65 to SZ-250

The Accuracy Curve illustrates that the error over the maximum capacity range is within guaranteed limits. An increase of density, e.g., higher line pressure, does not change the accuracy.

Accuracy Curve

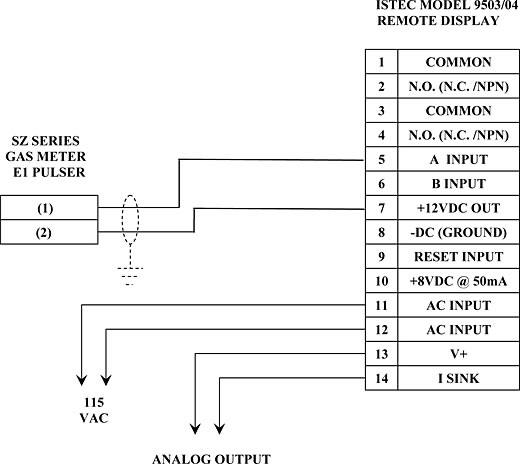

Gas Meter Model SZ Series Turbine Wiring Diagram

Download PDF Version • Download Wiring Diagram • Download Installation Manual
