Aquametro Contoil DFM 8EDM Fuel Meter
With Integrated Differential Measurement
- Optimal Design for Fleet Manager Owner
- Integrated Intelligence
- Passive Pulse Output
- TTL Pulse Output
- Compact 2-chamber System
- Space-saving Design
- Built for Extreme Environments
Technical Data
- Safety – Tested for Vibration, Shock and Electrical Emission and Immission
- (vehicle industry standards)
- Operation Temperature of the Hydraulic: -30°C to +80°C
- Diesel Fuel, Domestic Fuel Oil, Engine Oil (viscosity max. 6 cSt)
| Device | DFM 8EDM |
| Part Number | 94954 |
| Hydraulic Connection | M14x1.5 |
| Nominal Pressure | 16 |
| Protection Class (IP) | 66 |
| Nominal Flow Rate (l/h) | 200 |
| Minimum Flow Rate (l/h) | 10 |
| Accuracy (%) better than | 1 |
| Repeatability (%) | ±0.2 |
| Safety Filter Mesh Size (mm) | N/A |
| Volume of Measuring Chamber (ml) | 12.44 |
| Flow Sensor | I/Pulse (ml/pulse) |
Hz (max) |
Pulse Interval (min) |
Pulse Width |
mA (max) |
VDC* (range) |
Amplitude (range) |
| Double Sensor DFM 8EDM |
0.01244 (12.44) |
7 |
46ms |
20ms |
10 |
12-24 |
Equal to Power Supply |

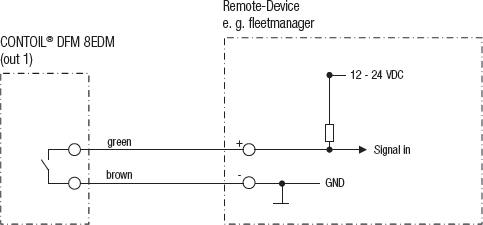

Passive Pulse
Whenever a pulse is generated, the electronic switch at the DFM 8EDM will be closed and the incoming 12-24VDC will be redirected to the external device.

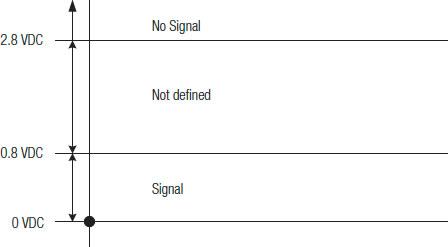

TTL Pulse
Below 0.8 VDC = pulse (logic 0)
Between 0.8 – 2.8 VDC is not defined
Over 2.8 VDC = no pulse (logic 1)
Table for Materials Used for DFM 8EDM Flow Meter
| Parts | Materials |
| Housing/Measuring Unit | Brass |
| Seals | FMP Fluorelastomer |
| Rotary Piston | Anodized Aluminum |

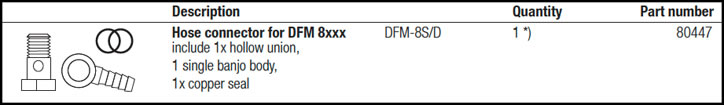

*) 4 sets needed for DFM 8EDM.
Download Aquametro's Contoil DFM 8ECO PDF Brochure • Visit Aquametro
