Aquametro Contoil DFM 12ECO Fuel Meters
With New Integrated Reed-contact Technology for Differential Measurement
- New: Improved Hydraulic Design allows Higher Flows
- New: Integrated Reed-pulse Technology
- Passive Pulse Output
- Compact 2-chamber System
- Space saving design
- Build for Extreme Environments
Technology Data
- Safety – Tested for Vibration, Shock and Electrical Emission and Immission
- (vehicle industry standards)
- Operation Temperature of the Hydraulic: -30°C to +80°C
- Diesel Fuel, Domestic Fuel Oil, Engine Oil (viscosity max. 6 cSt)
| Device | DFM 12ECO |
| Part Number | 95286 |
| Hydraulic Connection | M14x1.5 |
| Nominal Pressure | 16 |
| Protection Class (IP) | 66 |
| Qmax (l/h) | 600 |
| Qmin (l/h) | 10 |
| Tests | EMC, Shock, Vibration (4g) |
| Accuracy (%) better than | 1 |
| Repeatability (%) | ±0.2 |
| Safety Filter Mesh Size (mm) | 0.150 |
| Volume of Measuring Chamber (ml) | 12.44 |
| Flow Sensor | I/Pulse (ml/pulse) |
Hz (max) |
Pulse Interval (min) |
Pulse Width |
mA (max) |
VDC* (range) |
Amplitude (range) |
| Double Sensor DFM 12ECO |
0.01244 (12.44) |
14 |
46ms |
20ms |
10 |
12-24 |
Equal to Power Supply |
*This value is related to the ISO/DIS 16750-2
Passive Pulse
Whenever a pulse is generated, the electronic switch at the DFM 12ECO will be closed and the incoming 12-24VDC will be redirected to the external device.
Table of Materials Used for the Flow Meters
| Parts | Materials |
| Housing/Measuring Unit | Brass |
| Seals | NBR Butane-Acrynitril |
| Rotary Piston | Anodized Aluminum |

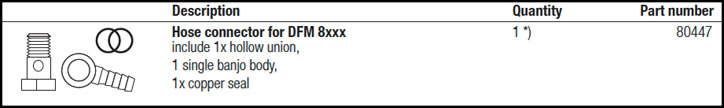

*) 4 sets needed for DFM 12ECO.
Download Aquametro's Contoil DFM 8ECO PDF Brochure • Visit Aquametro
